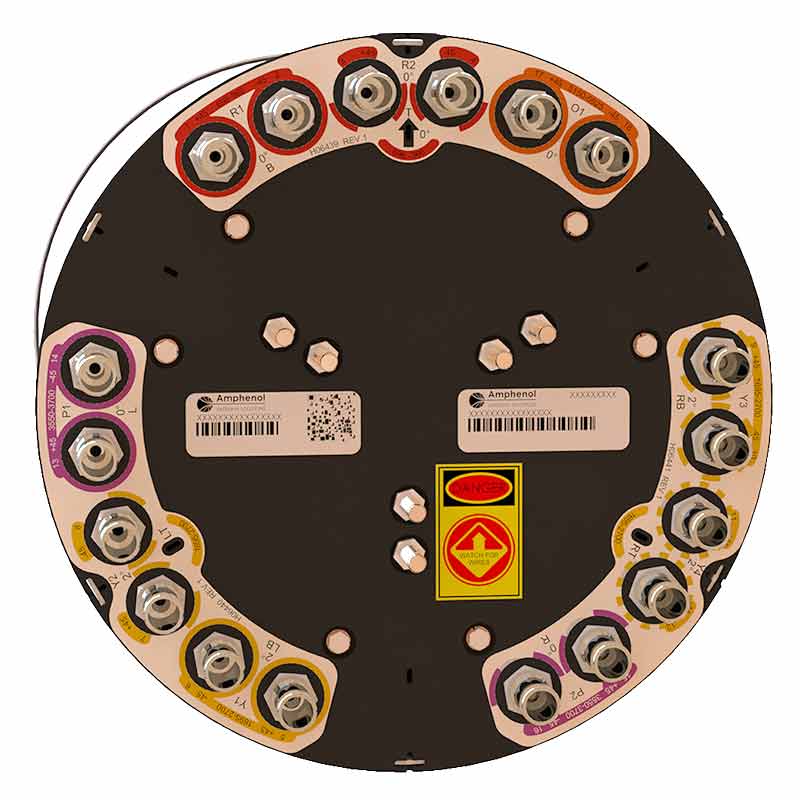

Amphenol Antenna Solutions 2C4U3MT360X06Fwxys3 Canister, 2FT, 18-Port, Omni Pattern, XPOL, (2x) 696-960 | (4x) 1695-2700 | (2x) 3300-4200 | (1x) 5150-5925 MHz, Fixed Tilt (Low Bands = 0° | Mid Bands = 2°, 4°, 6° | CBRS/LAA Bands = 0°), 4.3-10 Connectors.
- Extended CBRS Band
- Frequency Range: (2x) 696-960 | (4x) 1695-2700 | (2x) 3300-4200 | (1x) 5150-5925 MHz
- 18 Connectors
- Polarization: XPOL
- Horizontal Beamwidth: 360°
- Gain: Max at Low Band=5.1 | at Mid Band=8.2 | at CBRS=6.1 | at LAA=6.1 dBi
- 4G/5G Pseudo Omni configuration, Fixed Tilt
- Ideal for Small Cell / DAS applications
- Features extended CBRS Band from 3300 to 4200 MHz
- Meets the requirements of the U-NII
- Available for order with a grey, brown or black radome
Please refer to Data Sheet for additional specifications.
