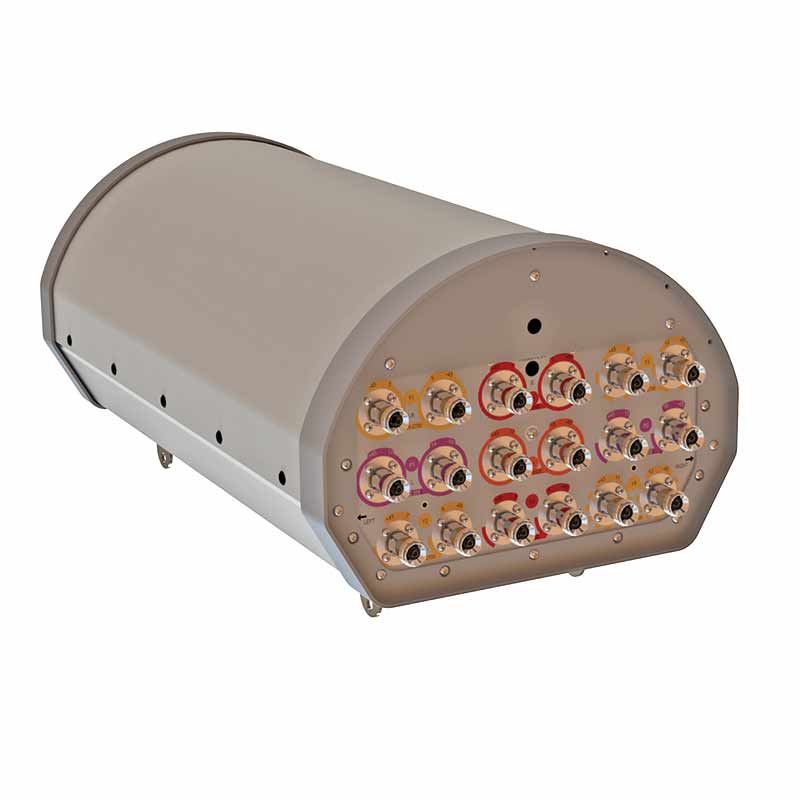

Amphenol Antenna Solutions 2C4U3MX065X06Fwxys0 Panel, 2FT, 18-Port, 65°, (2x) 696-960/(4x) 1695-2700/(2x) 3550-3700/(1x) 5150-5925 MHz, Fixed Tilt, Grey, 4.3-10 Connectors.
- Frequency Range: (2x) 696-960 | (4x) 1695-2700 | (2x) 3550-3700 | (1x) 5150-5925 MHz
- 18 Connectors
- Polarization: XPOL
- Horizontal Beamwidth: 65°
- Gain: Max at Low Band=8.7 dBi | Mid Band=12.6 dBi | CBRS=8.9 dBi | LAA=5.3 dBi
- Ultra-wide band performance, Fixed Tilt
- Ideal for Small Cell applications
- Meets the requirements of the U-NII
Please refer to Data Sheet for additional specifications.
