Amphenol Antenna Solutions 2C4U4MT360X06Fwxys4-GPS Canister Antenna

Additional information

Manufacturer

Your Price: $0.00
Add to Quote

Tempest Makes It Simple

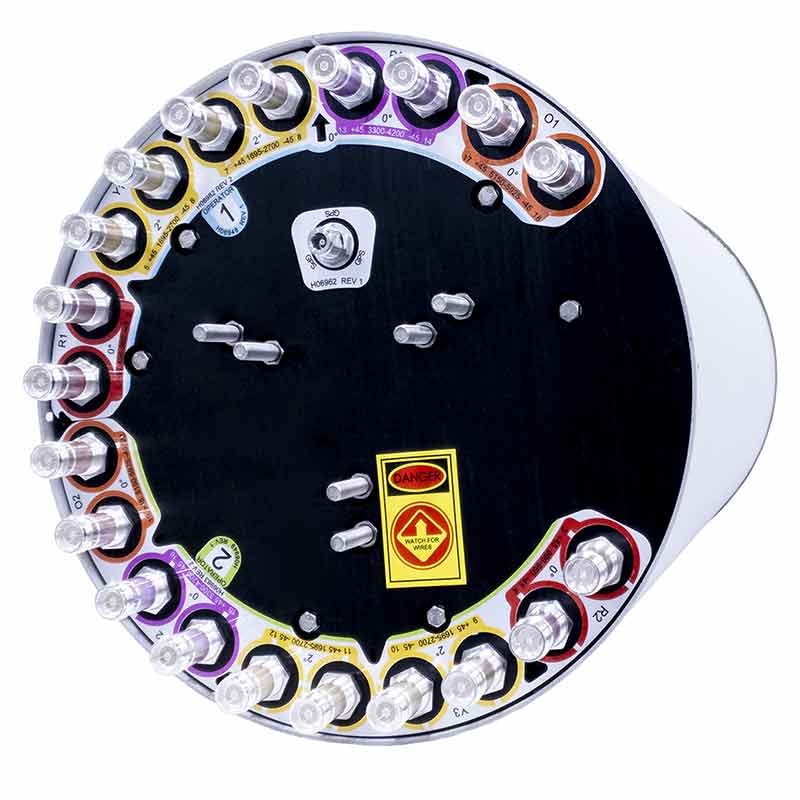

Amphenol Antenna Solutions 2C4U4MT360X06Fwxys4-GPS Canister, 2FT, 20-Port with GPS, Omni Pattern, XPOL, (2x) 696-960 | (4x) 1695-2700 | (2x) 3300-4200 | (2x) 5150-5925 MHz, Fixed Tilt (Low Bands = 0° | Mid Bands = 2°, 4°, 6° | CBRS/LAA Bands = 0°).

  • Integrated GPS unit with its own port
  • Extended CBRS Band
  • Frequency Range: (2x) 696-960 | (4x) 1695-2700 | (2x) 3300-4200 | (2x) 5150-5925 MHz
  • 20 Connectors
  • Polarization: XPOL
  • Horizontal Beamwidth: 360°
  • Gain: Max at Low Band = 4.8 | at Mid Band = 8.3 | at CBRS=7.6 | at LAA=5.7 dBi
  • 4G/5G pseudo omni configuration, Fixed Tilt
  • Ideal for multi-carrier or 4×4 MIMO deployments
  • New, enhanced mechanical and antenna design
    • Easily removable lifting ring
    • Extended CBRS Band
    • Improvements in gain, port isolation and VSWR
  • Meets the requirements of the U-NII
  • Available for order with a grey, brown or black radome

Please refer to Data Sheet for additional specifications.
