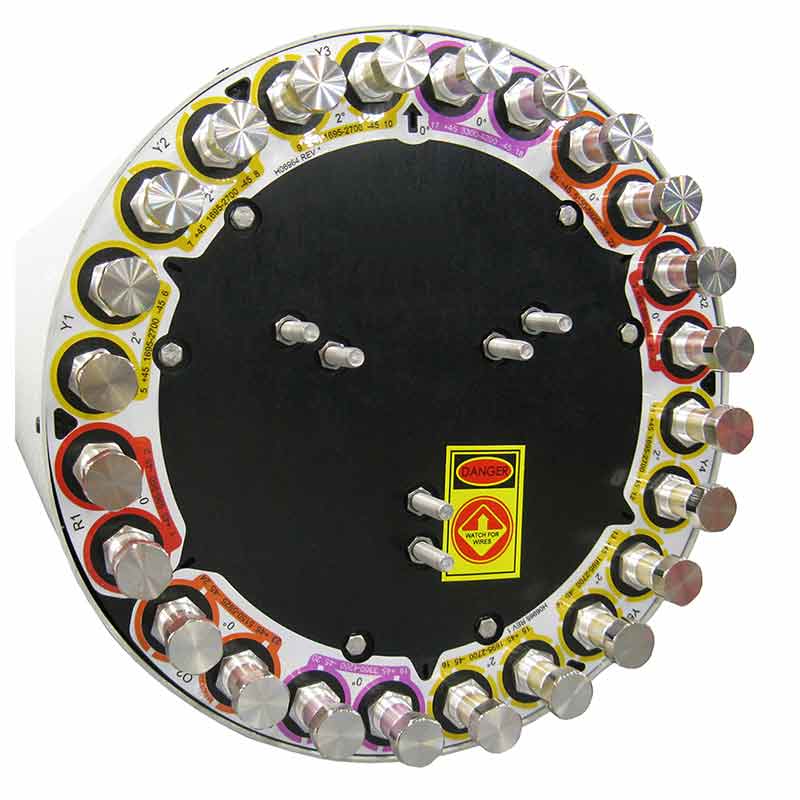

Amphenol Antenna Solutions 2C6U4MT360X12Fwxys4 Canister, 4FT, 24-Ports, Omni Pattern, XPOL, (2x) 696-960 | (6x) 1695-2700 | (2x) 3300-4200 | (2x) 5150-5925 MHz, Fixed Tilt (Low Bands = 0° | Mid Bands = 2°, 4°, 6° | CBRS/LAA Bands = 0°).
- Extended CBRS Band
- Frequency Range: (2x) 696-960 | (6x) 1695-2700 | (2x) 3300-4200 | (2x) 5150-5925 MHz
- 24 Connectors
- Polarization: XPOL
- Horizontal Beamwidth: 360°
- Gain: Max at Low Band = 4.6 | Mid Band =9.9 | at CBRS=6.3 | at LAA=6.0 dBi
- 4G/5G pseudo omni configuration, Fixed Tilt
- Dual antennas integrated under a single radome
- Ideal for multi-carrier or 4×4 MIMO deployments
- New, enhanced mechanical and antenna design
- Easily removable lifting ring
- Extended CBRS Band
- Improvements in gain, port isolation and VSWR
- 5 GHz U-NII FCC compliant
- Available for order with a grey, brown or black radome
Please refer to Data Sheet for additional specifications.
