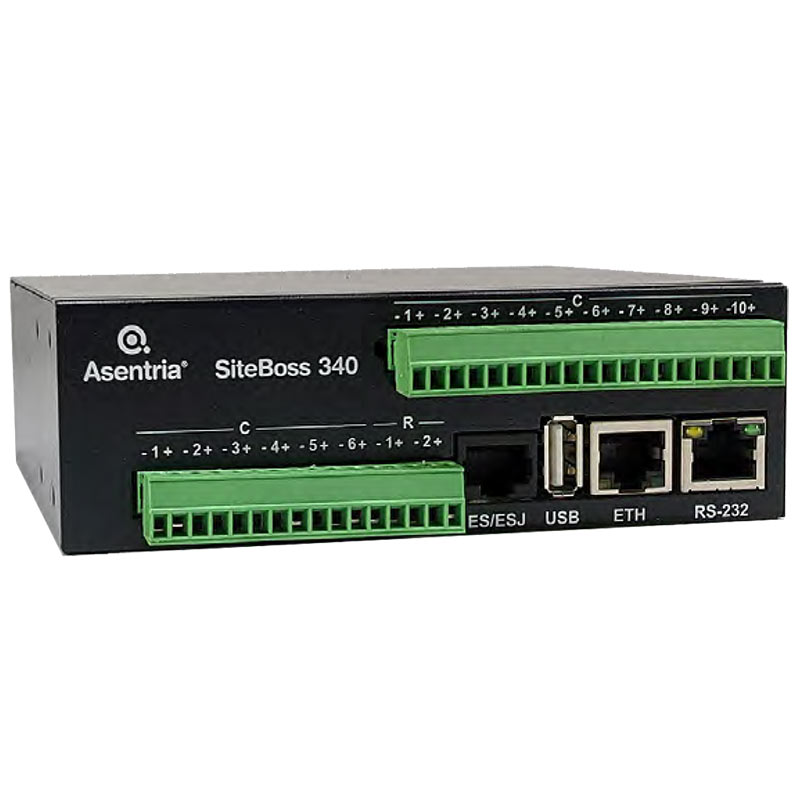

Asentria SiteBoss S340 Site Controller
The SiteBoss S340 is a small low-cost site controller. It is a versatile and powerful system used for monitoring and control of equipment sites.

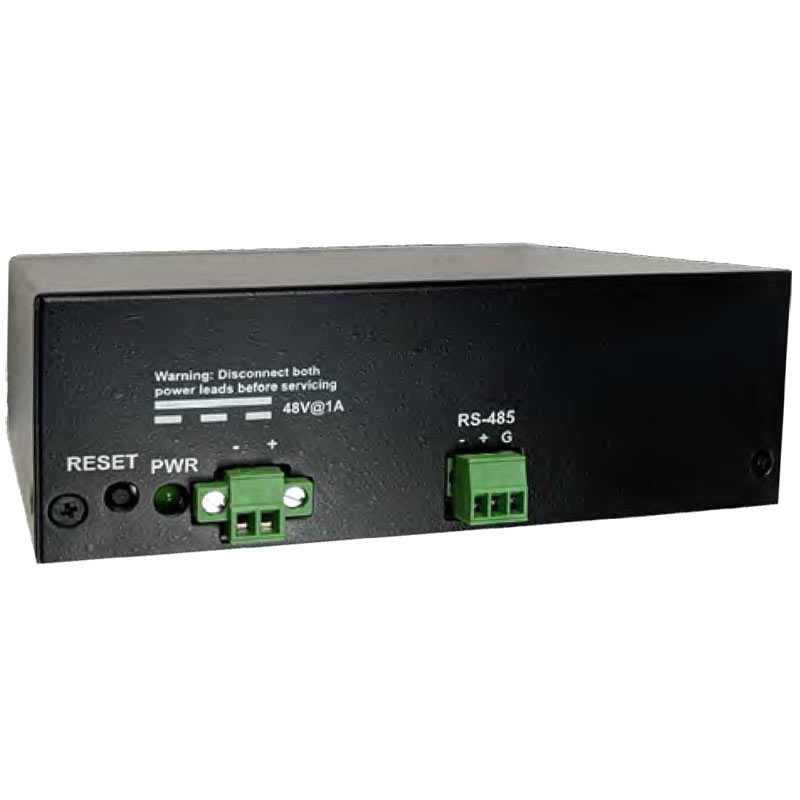

The S340 is a high powered full function SiteBoss with a small form factor and low cost. It is a versatile and powerful system used for monitoring and control of equipment sites. It is designed for locations with Ethernet communication availability. The S340 has a built in RS-485 serial port which is ideal for monitoring and controlling Modbus capable devices using the Lua scripting language.
The S340 can be used in remote cabinets or enclosures, from small cabinet locations up to large walk-in enclosures as well as server equipment locations. This device supports environmental monitoring, power monitoring from both AC and DC sources, generator fuel levels, fuse panels, battery monitoring as well as site security monitoring with access control.
- Unit Width: 5.25in / 13.335cm (without Mounting Bracket)
- Unit Depth: 5in / 12.17cm
- Unit Height: 1.75in / 4.445cm
- Unit Weight: 1.164lbs/ .528kg (Dependent on configuration)
- Power: 10-17VDC input range
- Power Usage: 15W(Max)
- Operating Temperature: -40° to 60°C
- Operating Humidity: 0 to 95% (Non-condensing)
- RoHS, UL Certified
- Mean Hours Between Failure: 433,000
Please refer to Data Sheet for complete specifications, including expansion card and configuration information.
