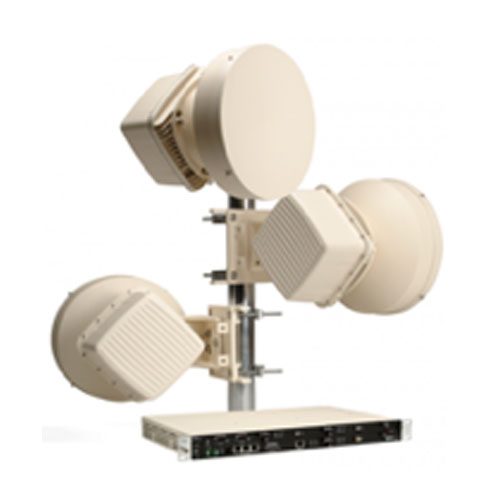

Aviat Eclipse Microwave Radio

Additional information

Manufacturer	Aviat

Your Price: $0.00

Indoor Units
Plug-in Units
Outdoor Units
Indoor Radio Units (IRU-600)

Add to Quote

Tempest Makes It Simple

Can’t find what you need? Tell us, and we’ll get it for you.

Description

Eclipse combines all TDM, SONET and Ethernet point-to-point wireless applications into a single product platform to dramatically reduce the total cost of using wireless backhaul, and change the way networks are planned, deployed and maintained.

Network Deployment & Optimization

Network Operation & Maintenance

Network Reconfiguration & Decommissioning

Aviat Eclipse Microwave Radio

Additional information

GET STARTED

We are ready to help with your network equipment and services needs.

Clever Solutions for Your Network Challenges

For Sales

For Sales

Select highlights

Network Solutions

Industries

EZE-10020 / IDU Ge3 License, 20 Mbps total Radio Payload Capacity
EZE-10050 / IDU Ge3 License, 50 Mbps total Radio Payload Capacity
EZE-10100 / IDU Ge3 License, 100 Mbps total Radio Payload Capacity
EZE-10150 / IDU Ge3 License, 150 Mbps total Radio Payload Capacity
EZE-10200 / IDU Ge3 License, 200 Mbps total Radio Payload Capacity
EZE-10400 / IDU Ge3 License, 400 Mbps total Radio Payload Capacity
EXG-601-002 / IDU GE3 16X, 6Xgigabit Ethernet + 16xE1/T1
EXX-000-003 / Eclipse, Intelligent Node Unit, INC IDCV2, FAN, NCCV2, High Output
EXX-000-203 / ECLIPSE, INTELLIGENT NODE UNIT 2RU, INC IDCE, FAN, NCCV2, HIGH OUTPUT
EXN-002 / Node Controller Card V2
EXS-002 / Node Protection Card
40710D-600 / Switched Network Interface Shelf

EXD-152-001 / DAC 1X1550, 1XSTM1/OC3, SM Optical
EXD-152-001 / DAC 16X, 16DS1, mini RJ21 connector
EXD-152-001 / DAC 1x155o, OC3 IR, SM SC connector
EXD-153-001 / DAC 155OM, 1XSTM1/OC3 MUXED TO 63E1/84DS1, SM OPTICAL, L-1.1, LR, 40KM OR LESS
EXD-156-001 / DAC 155OM, 1XSTM1/OC3 MUXED TO 63E1/84DS1, SM OPTICAL, S-1.1, SR, 15KM OR LESS
EXD-157-001 / DAC 1X155O, 1XSTM1/OC3, Multimode Optical
EXD-158-001 / DAC 155eM, 1XSTM1/OC3, MUXED TO 63E1/84DS1, ELEC SFP 1.0/2.3
EXD-180-102 / DAC GE , GIGABIT ETHERNET V2, NO SFP FITTED
EXD-181-002 / DAC GE3 GIGABIT ETHERNET SWITCH CARD
EXD-252-001 / DAC 2X1550, 2XSTM1/OC3, SM OPTICAL
EXD-254-001 / DAC 2X155E, 1/2XSTM1/OC3, ELECTRICAL
EXD-331-001 / DAC 3XE3/DS3M, MUXED TO E1/DS1 BUS
EXF-002 / ECLIPSE, FAN CARD V2
EXR-660-002 / RAC 60E, QPSK-256 QAM, High Gain, No XPIC, ACM and SYNC-E
EXA-001 / Aux & Alarm Card, qty 1

EEH-11 / ODU 600, 11GHz
EEH-18 / ODU 600, 18GHz
086-523341-611 / Coupler Assy Eclipse, 11 GHz Unequal 6 dB, V and H Polarisation
086-523341-613 / Coupler Assy Eclipse, 6 GHz Unequal 6 dB, V and H Polarisation
086-523341-608 / Coupler Assy Eclipse, 18 GHz Unequal 6 dB, V and H Polarisation
840-600311-050 / CABLE, IDU/ODU, NO CONN, 50M, .4IN COPPER CLAD ALUM TYPE (CNT-400-50M)
840-600311-075 / CABLE, IDU/ODU, NO CONN, 75M, .4IN COPPER CLAD ALUM TYPE (CNT-400-75M)
840-600311-150 / CABLE, IDU/ODU, NO CONN, 150M, .4IN COPPER CLAD ALUM TYPE (CNT-400-150M)
179-530062-002 / Kit, Lightning Arrestor, Universal, 50 Ohm, Male to Female (108-1118B-A-KIT)
179-530057-001 / Connector Kit N Type M&F 400 Type Cable
61510D-622-DB-01 / Digital Orderwire and Handset with Remote Telephone Interface
EZE-08001 / Node SW License, 50 Mbps Total Radio Payload Capacity
EZE-08002 / Node SW License, 100 Mbps Total Radio Payload Capacity
EZE-08003 / Node SW License, 150 Mbps Total Radio Payload Capacity
EZE-08004 / Node SW License, 200 Mbps Total Radio Payload Capacity
EZE-08005 / Node SW License, 300 Mbps Total Radio Payload Capacity
EZE-08006 / Node SW License, 400 Mbps Total Radio Payload Capacity
EZE-08007 / Node SW License, 800 Mbps Total Radio Payload Capacity
EZE-08008 / Node SW License, 1.2 Gbps Total Radio Payload Capacity
EZE-08009 / Node SW License, 1.6 Gbps Total Radio Payload Capacity
EZE-08010 / Node SW License, 2.0 Gbps Total Radio Payload Capacity
EZF-10002 / IDU Ge3 Feature License, Adaptive MODUlation
EZF-10009 / IDU Ge3 Feature License, Synchronous Ethernet
EZF-10019 / IDU Ge3 Feature License, Enable TDM Ports
EZF-10020 / IDU Ge3 Feature License, Advanced Qos

EEH-006 / ODU 600, 6GHz
ERC-020-301 / IRUv3 CHASSIS 2 RMS
ERC-030-001 / CHASSIS, 3.0RU, IRU 600
ERC-030-001A / CHASSIS, 3.0RU, IRU 600 (serialization required)
ERH-101-101 / RFU, HP, IRU600, 10 GHZ LB, 10150-10650 MHZ, IRU 600 V2
ERH-102-101 / RFU, HP, IRU600, 10 GHZ HB, 10500-10700 MHZ, IRU 600 V2
ERH-111-102 / RFU, HP, IRU600 V2, 11 GHZ LB, 10700-11200 MHZ
ERH-112-102 / RFU, HP, IRU600 V2, 11 GHZ HB, 11200-11700 MHZ
ERH-U51-101 / RFU, HP, IRU600, 5.8/L6 GHZ LB, 5725-6200 MHZ, IRU 600 V2
ERH-U52-101 / RFU, HP, IRU600, 5.8/L6 GHZ HB, 5785-6450 MHZ, IRU 600 V2
ERS-L61-101 / RFU, SP, IRU600, L6 GHZ LB, 5900-6200 MHZ, IRU 600 V2
ERS-L62-101 / RFU, SP, IRU600, L6 GHZ HB, 6150-6450 MHZ, IRU 600 V2
ERS-U61-101 / RFU, SP, IRU600, U6 GHZ LB, 6400-6800 MHZ, IRU 600 V2
ERS-U62-101 / RFU, SP, IRU600, U6 GHZ HB, 6700-7100 MHZ, IRU 600 V2
