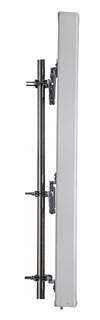

CommScope NHH-45C-R2B 6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 45° HPBW, 2x RETs and 2x SBTs. Both high bands share the same electrical tilt.
- Narrow beamwidth capacity antenna for higher level of densification and enhanced data throughput
- Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
- Separate RS-485 RET input/output for low and high band
- One LB RET and one HB RET. Both high bands are controlled by one RET to ensure same tilt level for 4x Rx or 4x MIMO
- Grounding Type: RF connector inner conductor and body grounded to reflector and mounting bracket
Operating Frequency Band: 698 – 896 MHz | 1695 – 2360 MHz- Antenna Type: Sector
- Polarization: ±45°
- Band: Multiband
- Impedance: 50 Ω
- Radome Material: Fiberglass, UV resistant

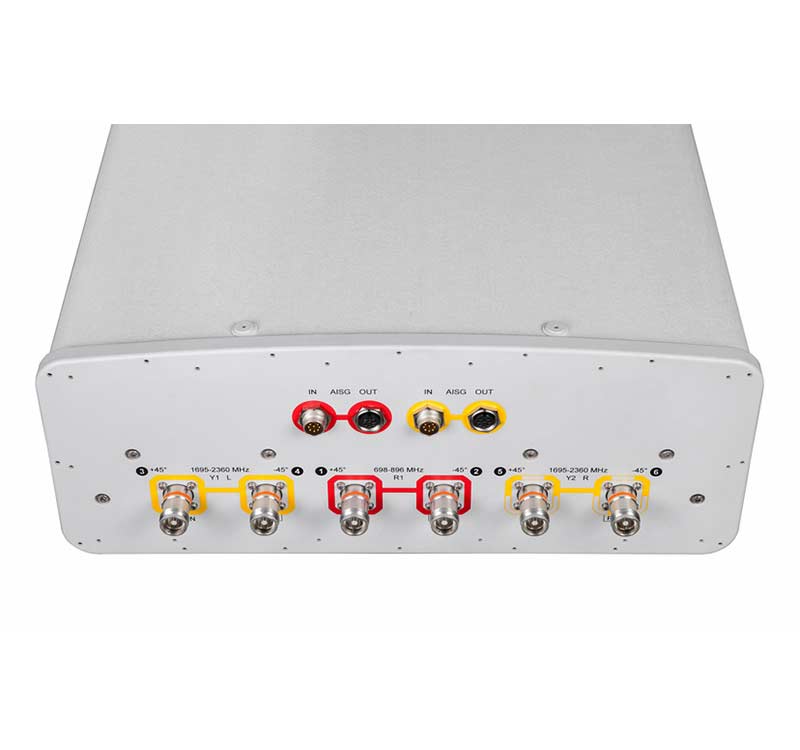

- RF Connector Interface: 4.3-10 Female
- RF Connectors: High/Low/Total: 4, 2, 6
- Total Input Power, maximum: 800 W @ 50° C
- Width/Length/Depth: 457 mm, 2437 mm, 178 mm
Operating Frequency Band: 698 – 896 MHz | 1695 – 2360 MHz
