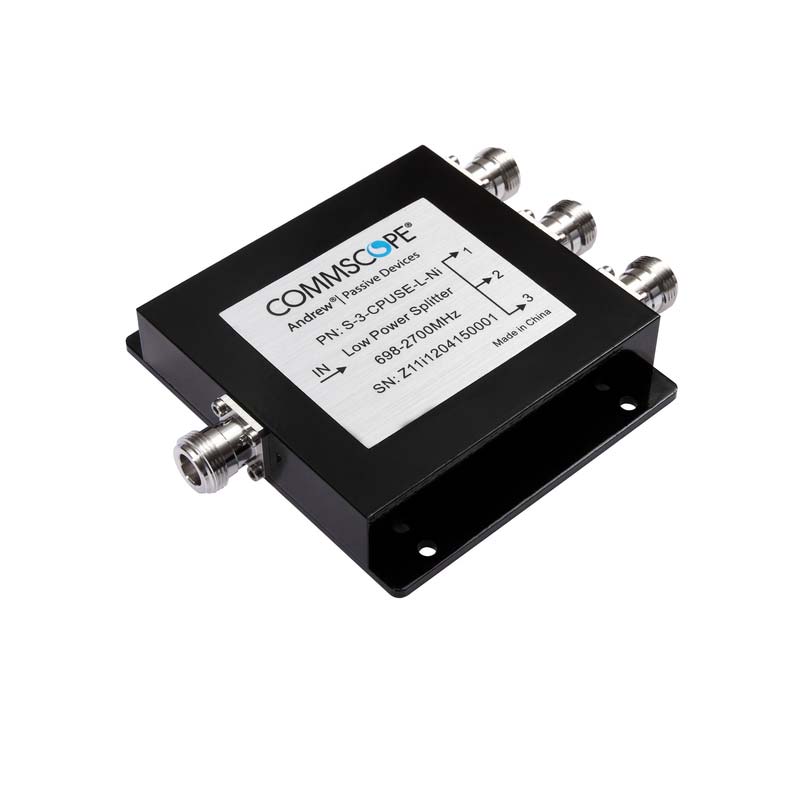

CommScope S-3-CPUSE-L-NI Low Power Splitter
Three-way, 698 – 2700 MHz
General Specifications
| Device Type | Splitter |
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 22 mm | 0.866 in |
| Width | 111 mm | 4.37 in |
| Length | 135 mm | 5.315 in |
Electrical Specifications
| 3rd Order IMD | -150 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.65 dB @ 555–2700 MHz |
| Average Power, maximum | 80 W |
| Dissipative Loss at Frequency Band | 0.6 dB @ 698–2700 MHz |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 17 dB @ 555–698 MHz | 20 dB @ 698–2700 MHz |
| Operating Frequency Band | 555 – 2700 MHz |
| Peak Power, maximum | 1 kW |
| Power Rating, combining | 0.5 W |
| Power Rating, Splitting | 80 W |
| Reflected Power, maximum | 5 W |
| Split Loss | 4.8 dB |
| VSWR at Frequency Band | 1.3:1 @ 698–2700 MHz | 1.58:1 @ 555–698 MHz |
