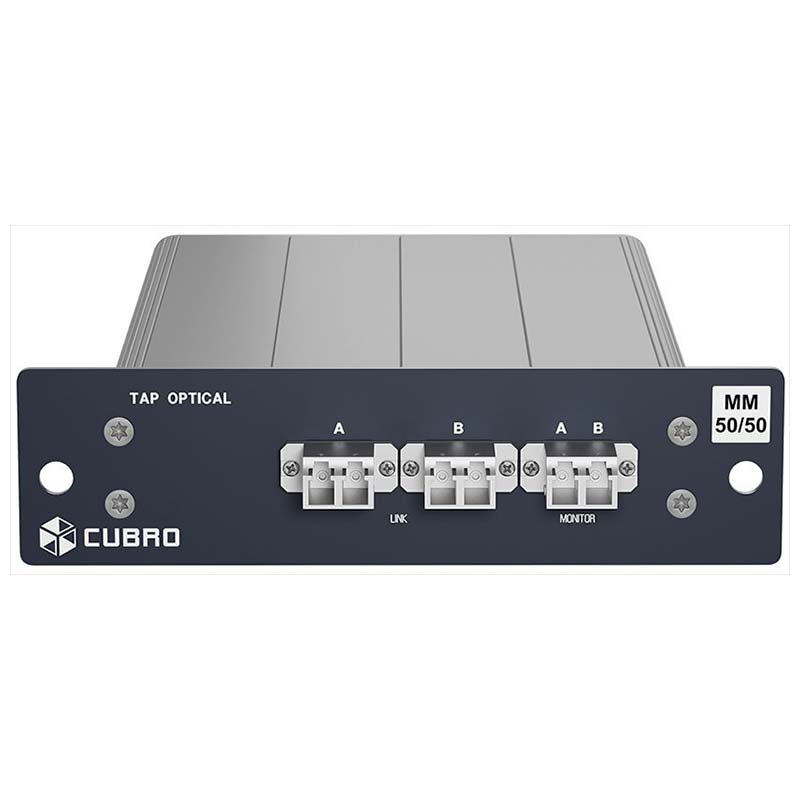

Cubro CBR.OPTO-2-SM-MM-R3 Optical TAP
A permanent, entirely passive, connection for network monitoring
Real-time monitoring access to a physical optical data link
The CBR.OPTO-2-SM-MM-R3 TAP provides a simple but powerful way to conduct in-service monitoring of high-speed optical networks such as SDH/SONET/OTN and Ethernet up to 100 Gbit. Cubro’s optical TAPs are completely transparent and offer 100% throughput, allowing for their use on any optical network application, regardless of the bitrate.
It is possible to build up to three units in the optional rackmount kit, which is 19″ and 1U height.
- 1 Link SM and 1 Link MM LC
- 4 Monitor Ports LC
- 1/3 19" rackmount housing
- Splitting ratio 80%/20% SM and 50%/50% MM
- Rackmount kit not included
- See Data Sheet for this series models’ specifications
Every splitter used inside a Cubro optical TAP is handled carefully, and insertion loss is measured before the TAP is shipped.
