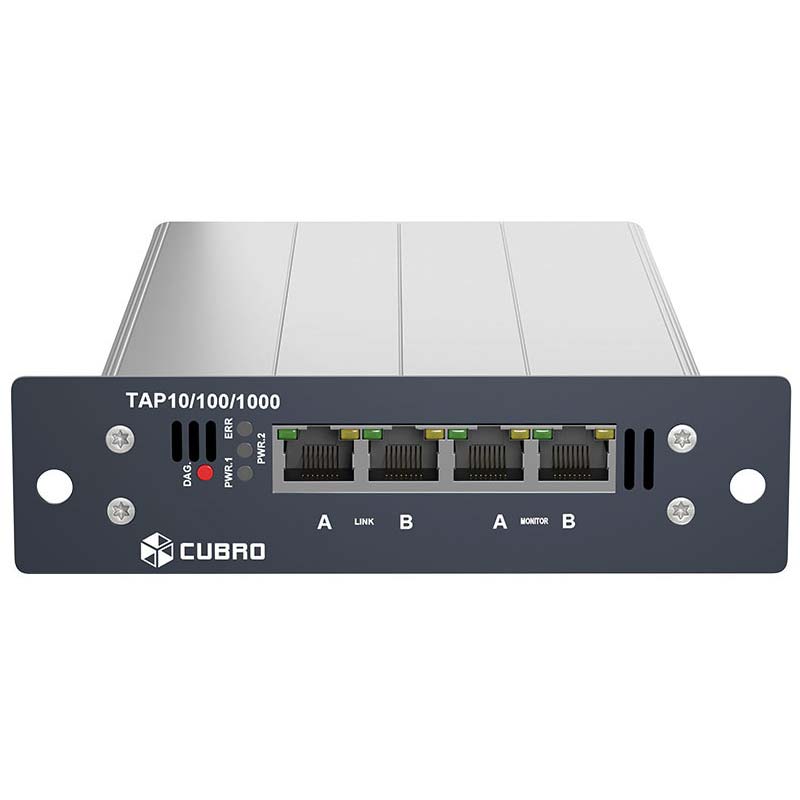

Cubro CBR.TAP-10/100/1000-B-R3 Electrical TAP
Complete access to your network connection with total traffic visibility
Fast ethernet 10/100 Copper TAP: PoE transparent across the link ports
The fast Cubro CBR.TAP-10/100/1000-B-R3 TAP provides cost-effective and high-performance device access for passive single full-duplex network monitoring. The TAP is fully-transparent, has 100% throughput, and very low delay — even for layers 1 and 2 faults.
The CBR.TAP-10/100/1000-B-R3 copper TAP is designed for permanent network installation and lets you plug & play several monitoring devices without disrupting the existing network connection. Additionally, the TAP invisible status provides additional defense. This TAP maintains network connectivity during power loss, this TAP also consistently delivers zero data loss, even during power outages.
- 10/100/1000 TAP B-Type
- 1 Link
- 1/3 19″ rackmount housing
Rackmount available option - Invisible to intruders
- Sends traffic to monitoring tools (incl. errors)
- Installs and operates easily
- Computer or software not needed
- Save time: no software updates
- Front panel power-indicating and activity-status LEDs
- Uses power supply CBR.PS-12: AC/DC 240V AC-85V AC to 12V DC
All Cubro TAPs can be combined to realize large monitoring solutions. Especially, with the network packet brokers in the middle, it is possible to monitor several hundred ports with one solution.
