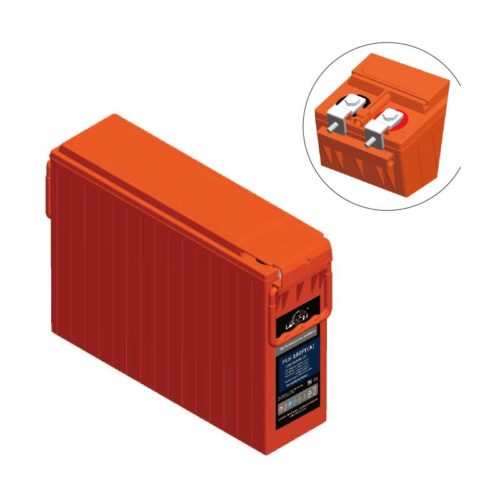

Leoch PLH100FT(A)
PLH Series Battery (12V, 100Ah)
PLH-Pure Lead Long Standby Life
Pure Lead used to optimize the high rate and float life. Punched continuous grid strip – better metal crystal structure, High Temperature Curing for Standby application to improve cycling ability.
- 12V, 100Ah
- Maximum discharge: 1200A
- 15.96″ (L) x 4.25″ (W) x 11.30″ (H)
- M6 Terminal
- Long float life for telecommunication applications
- High-rate performance, high energy density
- Premium ABS+PC jar & covers, Flame Retardant to UL94 V-0
- High quality AGM separators minimize electrical resistance to allow high current discharging properties
- A design life up to 20 years with Pure Lead-Thin Plate and punching technologies
- Unique vent valve design minimizes water loss and prevents air and spark going inside
- Maintenance free with oxygen recombination technology
Applications
- Telecommunication
- Uninterruptible Power Supply (UPS)
- Electric Power System (EPS)
- Emergency backup power supply
- Emergency lighting
- Railway signal
- Aircraft signal
- Alarm and security system
- Electronic apparatus and equipment
- Communication power supply
- DC power supply
- Auto control system
PLH series batteries can be stored up to 24 months at 25°C (77°F), For higher temperatures the time interval will be shorter.
