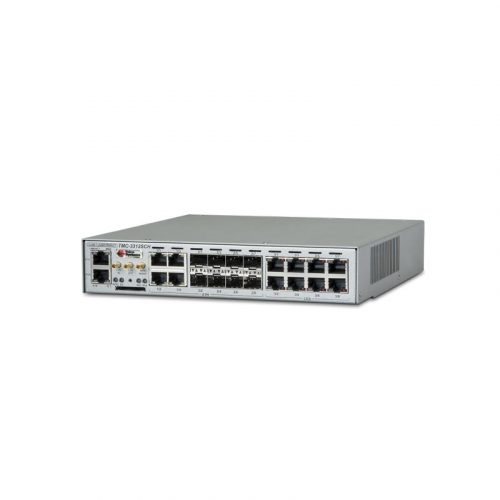

Telco Systems T-Marc 3312SCH – NextGen Ethernet/MPLS Mobile Backhaul Demarcation Network Interface Device
The T-Marc 3312SCH Network Interface Device (NID) offers an all-in-one solution, that meets the increasing challenge of mobile operators, and mobile backhaul wholesale and service providers to cost-effectively connect base stations and controller sites combining 2G/3G and 4G networks.
The T-Marc 3312SCH offers one of the densest demarcation devices on the market, incorporating high capacity in a compact “shoe-box” size (1RU by ½RU width), with 4 x 10/100/1000BaseTx, 8 x dualspeed (100M/1G) fiber ports and 8 x E1/T1 Circuit Emulation Service (CES) ports for 2G/3G migration. The T-Marc 3312SCH supports redundant power supplies (AC/24VDC/48VDC) making it optimal for cell site deployment.
Note: T-Marc 3312SCH is the same product as the T-Marc 3312SC, with the addition of BITS in/out interfaces support clock and hardened temperature (-40°C to 65°C / -40°F to 149°F).
- Mobile backhaul 2G/3G/4G optimized demarcation device
- Premium Carrier Ethernet, MPLS & IP service demarcation device
- Wire speed, non-blocking switching
- Support for high amounts of service using Hierarchical QoS (HQoS)
- Multiple resiliency mechanisms
- Extensive, ield-proven, OAM support
- Circuit Emulation Services (CES) for TDM over packet
- MEF, IEEE, ITU-T and IETF standards compliance
- Multi-vendor interoperable
- Integrated with EdgeGenie Service Management System – simplifying full lifecycle of network deployment
- BITS in/out interfaces support*
- Hardened temperature (-40°C to 65°C / -40°F to 149°F)*
- Small footprint, 1RU high, 1/2 shelf wide
