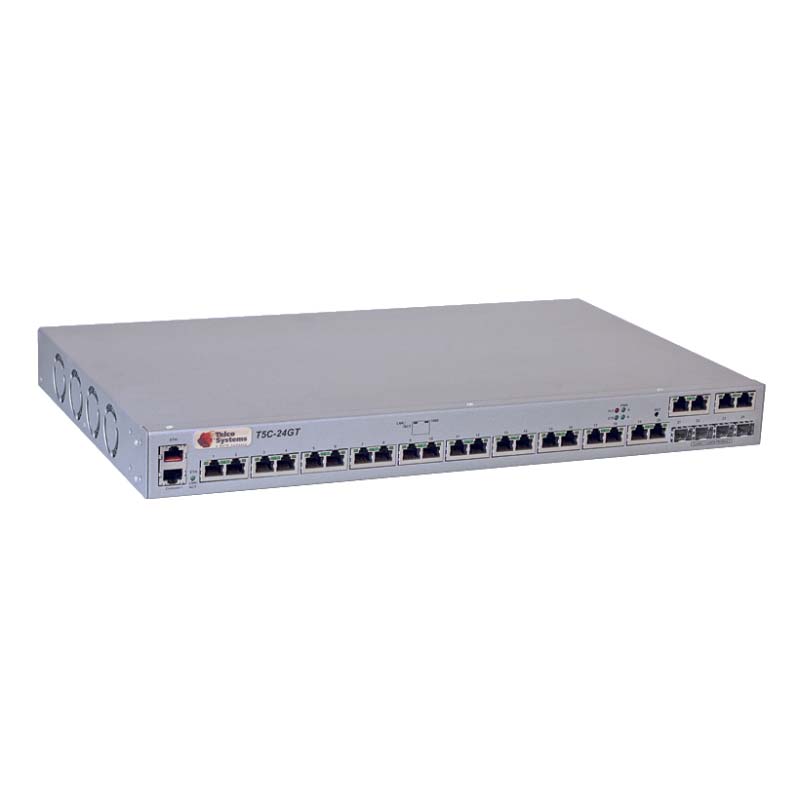

Telco Systems T5C-24GT – Ultra-Compact High-Density Gigabit 10/100/1000 BaseT Aggregation and Distribution Routing Switch
The T5C Gigabit Ethernet Routing Switch provides an optimal solution for Gigabit Ethernet Intelligent Layer 3 Aggregation and Distribution services for Enterprises uses such as datacenters, and mini-core applications.
T5C-24GT supports 20 Gigabit 10/100/1000BaseT ports and 4 combo Gigabit Ethernet ports either 10/100/1000 BaseT or plug-in miniGBIC (SFP) 1000 BaseX, providing a total of 24 ports.
T5C-24GT supports 20 Gigabit 10/100/1000BaseT ports and 4 combo Gigabit Ethernet ports either 10/100/1000BaseT or plug-in miniGBIC (SFP) 1000BaseX, providing a total of 24 ports. T5-24GT supports either AC or DC feeds. The T5C Routing Switch is the optimal platform for service providers for many aspects. The T5C-24GT capabilities provide the required solution for many application needs, from the Metro Core arena to the Metro edge and enterprise boundaries, either serving as the aggregation and/or distribution layer in a Metro application or as a core device in medium and small Metro access and enterprise networks. Users can benefit from its perfect compatibility to standards (for flawless interoperability), its smooth upgradeability and scalability options with versatile interface types, and feature-rich capabilities that allow the service provider to provide any IP-driven service from a single unique platform. Copper Gigabit Ethernet provides cost-effective high-speed links and cascading capabilities. Plug-able miniGBIC (SFP) optical Gigabit Ethernet interfaces allow network extension over large distances. Various fiber interfaces for both MM (SX), SM long-haul and extra long-haul optics, Bi-directional (single fiber usage) and CWDM modules are supported.
The T5C’s super-efficient size (only 1RU in height), includes not only the capacity of physically larger backbone routing switches, but also the economy offered by workgroup switches. Other features include:
- Wire speed, non-blocking Layer 2 switching
- Extensive set of routing capabilities: static routing, RIP, OSPF, IS-IS, VRRP
- TLS for E-2-E tunneling
- Multi-layer multicast support for video-conferencing and online learning applications (IGMP, PIM-SM/DM)
- Jumbo frames support
- Sub 50ms switch over time in Carrier Ethernet rings
- Link Aggregation (802.3ad & LACP) broadens the bandwidth between switches, adding robustness and redundancy
- 1+1 link redundancy
- Redundant power option (AC and DC)
- Multi-layer OAM based on IEEE 802.3ah (link), IEEE 802.1ag (connectivity) and MEF OAM (services) provides unprecedented inservice monitoring, troubleshooting and fault isolation in multi-vendor networks
- Extensive QoS support includes traffic classification, rate-limiting, queuing, shaping and congestion avoidance Comprehensive set of security features for authentication, connectivity and access control
- Professional management tools provides a vast variety of management methods
- Low power consumption
- MEF and IEEE standards compliance for multi-vendor interoperability
- NEBS Level 3
