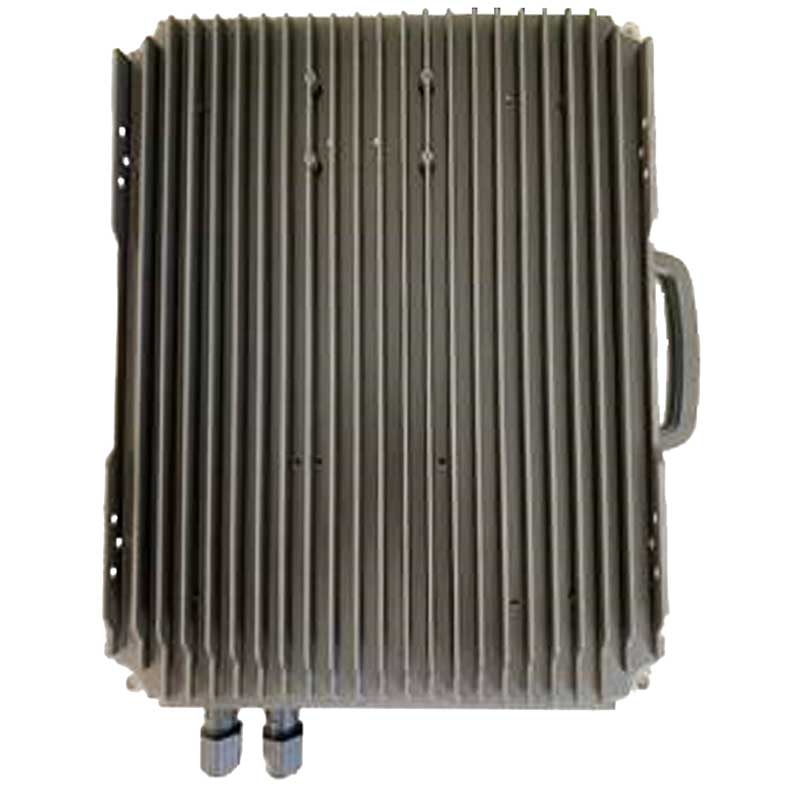

Tellabs FlexSym Optical Line Terminal Mini (OLT-mini)
Features a weathertight case, passive cooling and extended temperature range tolerance
The Tellabs FlexSym® Optical Line Terminal Mini (OLT-mini) provides a small form-factor OLT supporting either GPON or symmetrical 10 gigabit XGS-PON in a sealed enclosure. The Tellabs FlexSym OLT-mini weathertight case, passive cooling and extended temperature range means that it is ideal for both indoor and outdoor connectivity. All of these features optimize the OLT-mini for transportation (e.g. air, rail, road, warehousing), manufacturing (e.g. food & beverage, heavy industry), utilities (electric, gas, water) and natural resource industries as it solves their difficult connectivity challenges of sprawling distances, harsh environments and extended temperature ranges.
10G XGS-PON or G-PON Service
The FlexSym OLT-mini has two (2) PON ports can be equipped with matching 10 gigabit symmetrical XGS-PON XFPs or matching G-PON XFPs – the two ports must be the same PON mode. With the choice of either PON speeds, the OLT-mini can connect all of Tellabs’ true enterprise Optical Network Terminals (ONTs) for both closet-based and deep fiber, including indoor and outdoor ONTs.
1G or 10G Ethernet Uplinks
The FlexSym OLT-mini supports four (4) SFP+ interfaces which can be used to create LAGs. These uplinks can be configured for a variety of speeds and distances by populating with SFP+ modules that are sold separately. The ports can be equipped with any of the 1G or 10G Tellabs SFP+ modules. The four SFP+ ports can be used as uplinks, or an east and west daisy chain to enable either a linear or ring architecture. This is particularly useful for running down roadways or train tracks and delivering service.
AC or DC Powered
The FlexSym OLT-mini offers AC power including dual internal redundant rectifiers for high availability applications. The OLT-mini can be wired to plug into any power receptacle and work (120/240VAC). The OLT-mini is equipped for direct DC (48VDC) input supporting either a single dual DC input. This OLT-mini can be powered using remote digital power/electricity for enabling even greater power pair distances with enhanced touch safe power.
Indoor or Outdoor Mounting
The FlexSym OLT-mini is housed in a sealed weathertight case and is passively cooled. The OLT-mini supports the full industrial temperature range from -40 to +55. It can be easily mounted to a pole, wall or backboard via the included mounting plate. The OLT-mini can also be padlocked to prevent unauthorized access.
- Ideal for outdoor and extended reach connectivity
- Equip with 10G symmetrical XGS-PON or G-PON service
- 40 Gbps uplink capacity in either linear or ring network design
- Hardened and housed in outdoor weathertight enclosure
- Extended temperature range for indoor or outdoor mounting
- Powering can be with either 110/240 VAC or 48-56V DC input
Please refer to Data Sheet for complete specifications.
