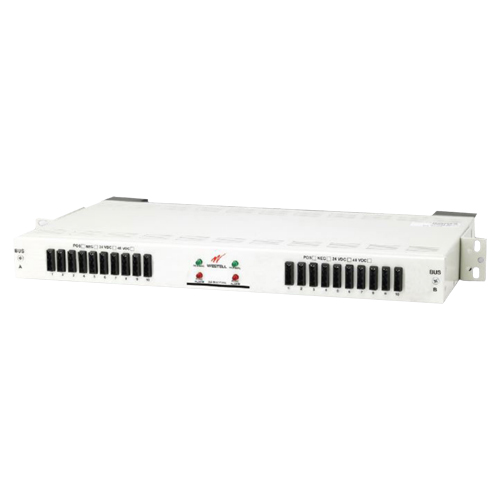

WESTELL NPGMT1107 Dual Bus GMT 20 Amp Fuse Panel: Reliable Power Distribution for Critical Applications
The WESTELL NPGMT1107 Dual Bus GMT 20 Amp Fuse Panel is a robust and efficient solution for distributing DC power to equipment in demanding environments. Engineered for optimal performance and safety, this panel is ideal for wireless, central office, co-location, remote site, and secondary distribution applications.
Key Features:
- Dual Bus Design: Two isolated busses, each with 10 GMT fuse positions (20A max), enable flexible power distribution and redundancy.
- High Current Capacity: Delivers up to 200 Amps of output current (100 Amps per bus) to handle demanding power requirements.
- Polarity Insensitive: Compatible with both +24Vdc and +48Vdc battery systems for versatile applications.
- Advanced Protection: Individual GMT fuses safeguard each circuit, while alarm contacts and LED indicators provide real-time status monitoring.
- Compact and Durable: Single 1.75″ mounting height and rugged construction ensure reliable performance in harsh conditions.
- Industry Standards: Meets NEBS Level 3 and NRTL safety certifications for dependable operation.
Benefits:
- Enhanced System Uptime: Redundant power paths and advanced protection minimize downtime and equipment failures.
- Simplified Installation: Clear labeling and accessible components streamline the installation process.
- Flexible Deployment: Compact design and versatile mounting options accommodate various rack configurations.
- Cost-Effective: Optimized power distribution reduces energy consumption and operational expenses.
Applications:
- Wireless infrastructure
- Central office equipment
- Co-location facilities
- Remote site power distribution
- Secondary power distribution
Technical Specifications:
- Voltage: +/-24 or +/-48 Vdc
- Current: Bus 100 Amps max, Fuse 20 Amps max
- Fuse Type: GMT style
- Dimensions: 1 3/4 H x 17 W x 10 1/2 D
- Operating Temperature: -40 to +65°C (-40 to +149°F)
- Rack Mounting: 19″ and 23″ racks for 1″ or 1-3/4″ panel spaces
Invest in the WESTELL NPGMT1107 to ensure reliable and efficient power distribution for your critical applications.
- The NPGMT1107 has 2 isolated groups (busses) of GMT fuses (20Amps per position max.)
- Polarity insensitive (+/-24 or +/-48 Vdc) battery voltage
- Operates at 200 Amps of output current per panel (100 Amps per Bus)
- Barrier terminal strips for fused outputs and isolated returns (grounds)
- Form C relay contacts are provided to extend alarms
- One set of alarm contacts for each; Bus A, and Bus B Alarm
- Single 1.75” mounting height (single panel space)
- Mounting brackets are supplied for 1” & 1-3/4” spacing
- Universal mounting hardware for 19” and 23” racks, with flush and offset mounting options
- NEBS level 3 verified, with zone 4 earthquake
- NRTL Safety Listed
Please refer to Data Sheet for additional specifications.
